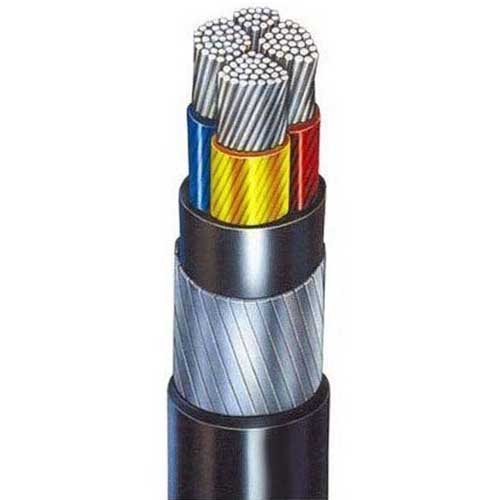

LT PVC Cables

L.T. (Low Tension) cables are widely used for low voltage (1.1 KV), These cables must have proper protection from water, corrosion and mechanical strength must be high. These cables must sustain a longer life for that various protections are required. LT PVC Power Cables are available in different combinations, such as Aluminum, Copper Conductors, Round Solid Conductor, Stranded Conductor, Shaped conductors, taped inner sheath, extruded inner sheath. round steel and aluminum wire/flat galvanized steel strip armoured, unarmoured, single/ double outer sheathed etc. are available.

LT PVC Cables Specifications:

•  LT Power Cables: Majorly used for distribution of power up to 1100 volts
•  Conductor: Aluminum or Copper Soiled/Stranded/Annealed/Circular Shaped
•  Insulation:XLPE/PVC/HR PVC/Zero Halogen/FRLS/FR/Special Company
•  Inner Sheath: PVC/HR PVC/FR/FRLS/Zero Halogen/Special Company
•  Armouring: G.S. Round wire/Flat Strip
•  Outer Sheath: PVC/HR PVC/FR/FRLS/Zero Halogen/Special Company
•  Voltage: Up to 1100 volts
•  Size: We offer all types of LT PVC Power Cables size starting from 1.5 sq. mm to 630 sq. mm.
•  Manufacturing Standards: These Cables are manufactured as per Indian Standards 1554, Indian Standards 7098, Indian Standards 694

LT PVC Cables Features:

We manufacture different types with combinations of specifications as mentioned above as per IS 1554 Part I for cables up to 1554 Part II for 3300V.

LT PVC /XLPE Power Cables are used underground as well as overhead transmission of power in:

•  Power plants
•  Industries
•  Other outdoor applications
•  Power transmission and distribution line
•  Residential, commercial and industrial applications

Single Core PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part 1) 1988.

•  2 Core PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part-1) 1988.
•  3 Core PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part-1) 1988.
•   3.5 Core PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part-1) 1988.
•  4 Core PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part-1) 1988.
•  PVC Insulated armoured & unarmoured cable with Alum. Copper Con. Conf. to IS: 1554 (Part-1) 1988.
•  Group Rating Factors for Circuits for Three Single Core Cables in Trefoil and Touching Horizontal Formation laid.
•  Rating Factors for Groups of Twin and Multi core Cables laid Direct in Ground in tier formation.
•  Rating Factors for Variation in Thermal resistivity of soil (Multicore Cables laid Direct in Ground).
•  Rating Factors for Variation in Thermal resistivity of soil, three single core cables laid direct in the Ground.
•  Rating Factors for Variation in Dept. of laying in Ground.
•  Rating Factors for Variation in Ambient Aire Temperature.
•  Rating Factors for Variation in Ground Temperature.
•  Rating Factors for multicore Cables laid on open racks in Air, cables laid on cables trays in her by 300 mm. The clearance between the cable is 25mm.
•  Rating Factors for Groups of Twin and multicore cables laid direct in ground in horizontal formation.
